General Features:

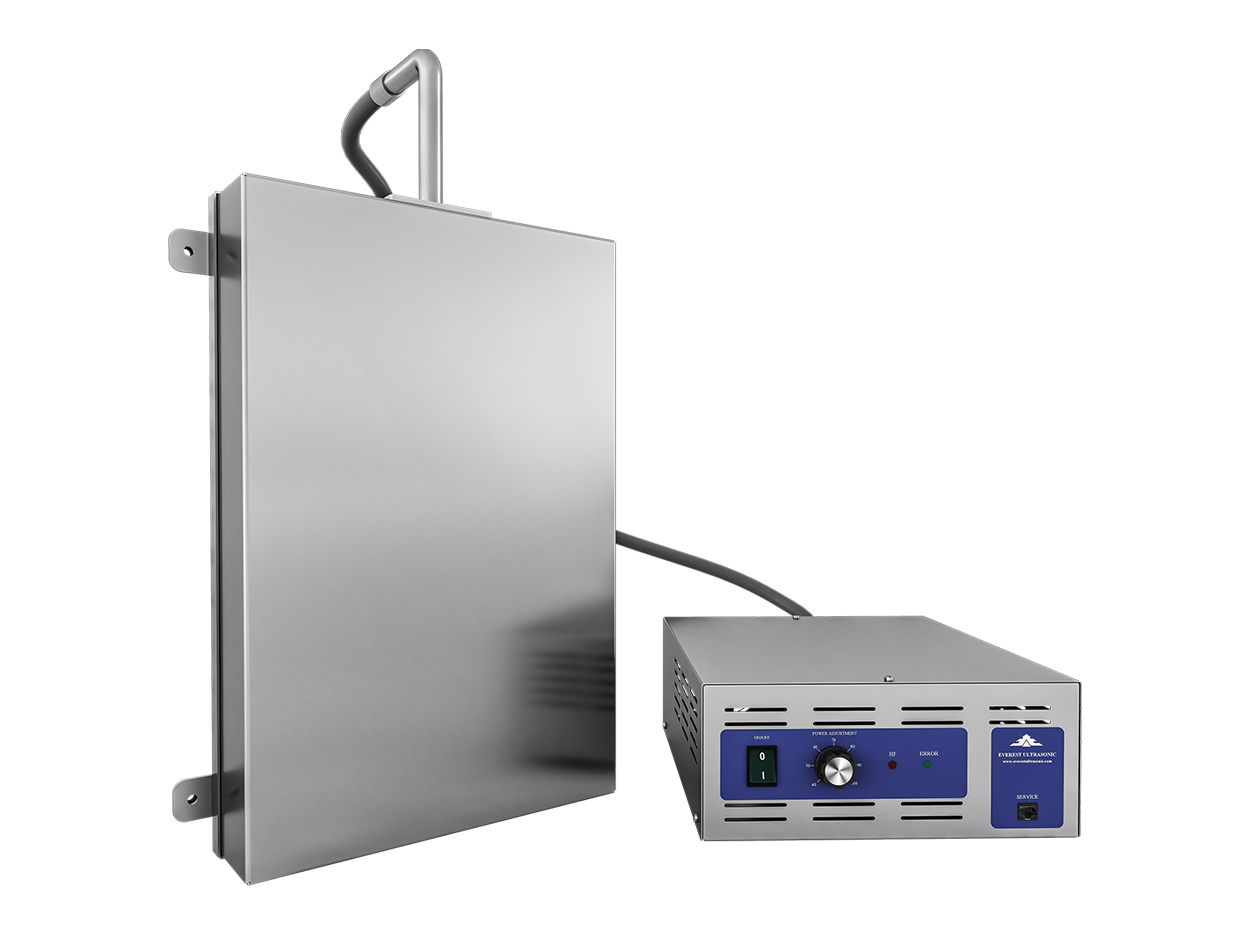

MobileClean-N ultrasonic modules are components that can be installed in the to retrofit existing lines or included in the newly designed machines to ensure the precise cleaning of heavy dirt such as oil, grease, production wastes accumulated on all surfaces of the parts coming out of the production or maintenance line. These ultrasonic modules provide high precision cleaning performance. In Mobile-N modules, lower energy consumption is made with high-frequency generators with high-efficiency circuits.

Washing system: Ultrasonic transducers located special designed waterproof stainless steel boxes.
Working principle: Works by being mounted into liquid filled tank.
Construction: Constructed from 2.0mm stainless steel 316L as standard. Other materials are available at request.
Ultrasonic Generator
Model Frequency
MBL N- GN 600-1 28 28 khz
MBL N- GN 600-1 40 40 khz
MBL N- GN 1000-1 28 28 khz
MBL N- GN1000-1 40 40 khz
MBL N-GN1500-1 28 28 khz
MBL N- GN1500-1 40 40 khz
MBL N- GN 2000-1 28 28 khz
MBL N- GN 2000-1 40 40 khz

Ultrasonic Module
Model Ultrasonic Frequency
Transducer Dimensions
Ultrasonic Power
MBL N- TR 600-1 28 28380*300*901200peak/600eff
MBL N- TR 600-1 40 40
MBL N- TR 600-2 28 28460*225*901200peak/600eff
MBL N- TR 600-2 40 40
MBL N-TR 600-3 28 28525*205*901200peak/600eff
MBL N-TR 600-3 40 40
MBL N- TR 1000-1 28 28640*225*902000peak/1000eff
MBL N- TR 1000-1 40 40
MBL N- TR 1000-2 28 28545*260*902000peak/1000eff
MBL N- TR 1000-2 4040
MBL N- TR 1000-3 2828750*225*902000peak/1000eff
MBL N- TR 1000-3 4040
MBL N- TR 1000-4 2828545*360*902000peak/1000eff
MBL N- TR 1000-4 4040
MBL N- TR 1500-1 2828545*360*903000peak/1500eff
MBL N- TR 1500-1 4040
MBL N- TR 1500-2 2828760*380*903000peak/1500eff
MBL N- TR 1500-2 4040
MBL N- TR 2000-1 2828760*380*904000peak/2000eff
MBL N- TR 2000-1 4040
MBL N- TR 2000-2 28 28800*400*904000peak/2000eff
MBL N- TR 2000-2 4040

***Contact us for more technical information.
» Cost saving
» Environmentally friendly
» Energy efficient
» Provides gentle cleaning
» Can be applied for all washing and rinsing tanks.
» Module recipes can be programmed separately in all processes.
» 28kHz-40kHz
» Can be placed on tank floor, mounted on side walls or hung with hooks
» 316 stainless steel
» Overload protection, overcurrent protection, overheat protection

Addable Features
» Adjustable ultrasonic power setting between 40% - 100%
» 316Ti and 318LN (duplex) stainless steel can be used upon request
» Can be placed on tank floor, mounted on side walls or hung from the tank walls with hooks

***All our MobileClean-N modules can be custom designed according to the needs of our customers. Contact us for your special needs...
